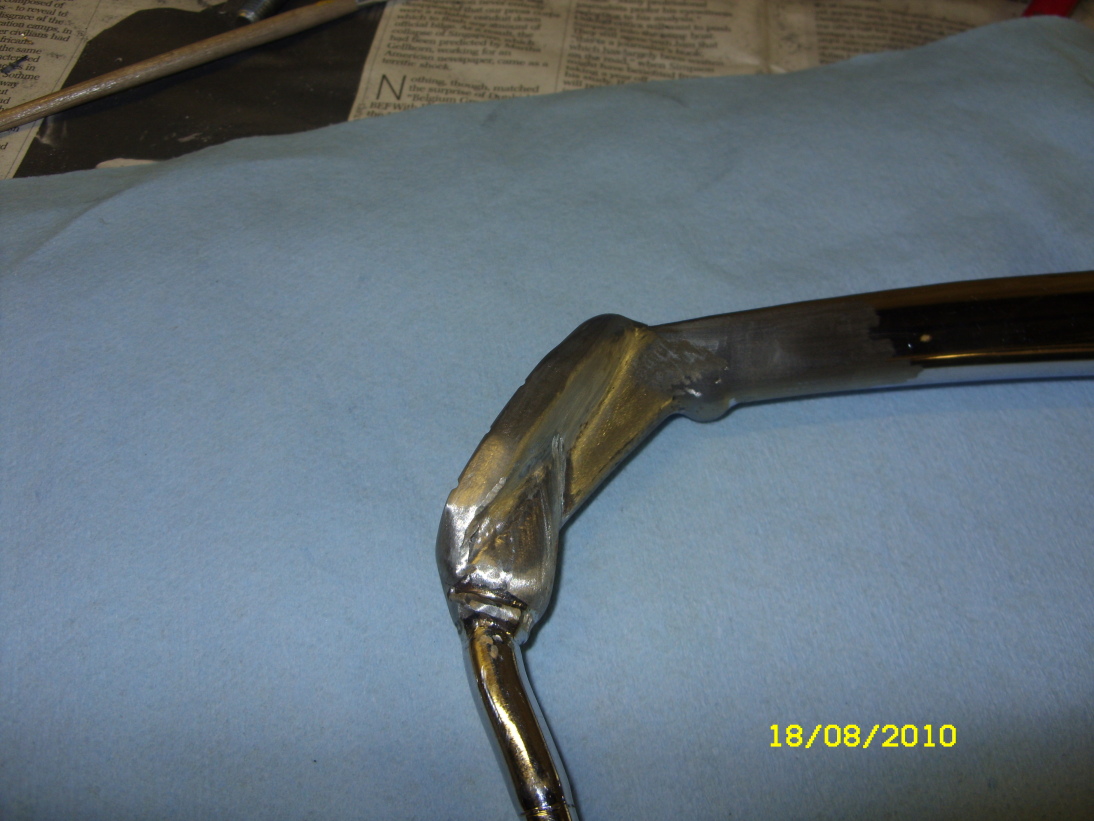

Suzuki GT750 side standWelded a 3mm thick piece of stainless steel plate to the bottom of the side stand. Any scratches will not rust the base of the stand.

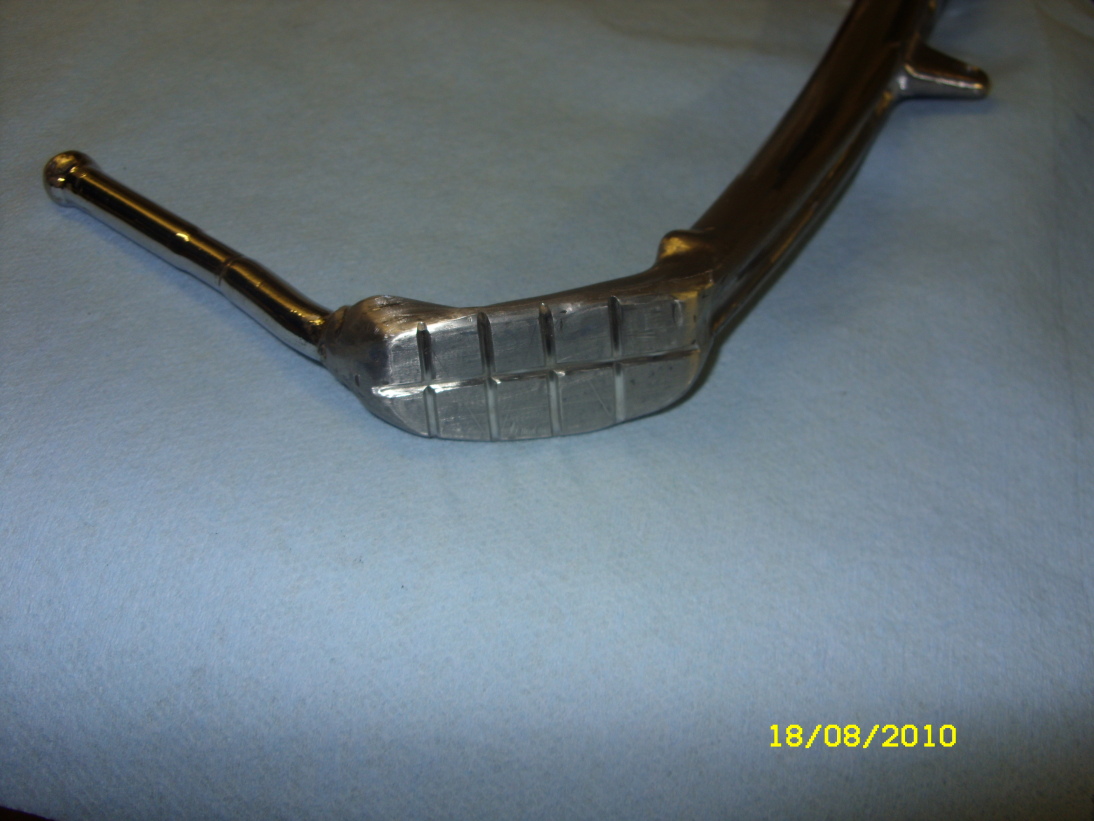

Suzuki GT750 side standUsed a dremel cutting disc to cut the grooves in the stainless plate to help prevent it slipping.

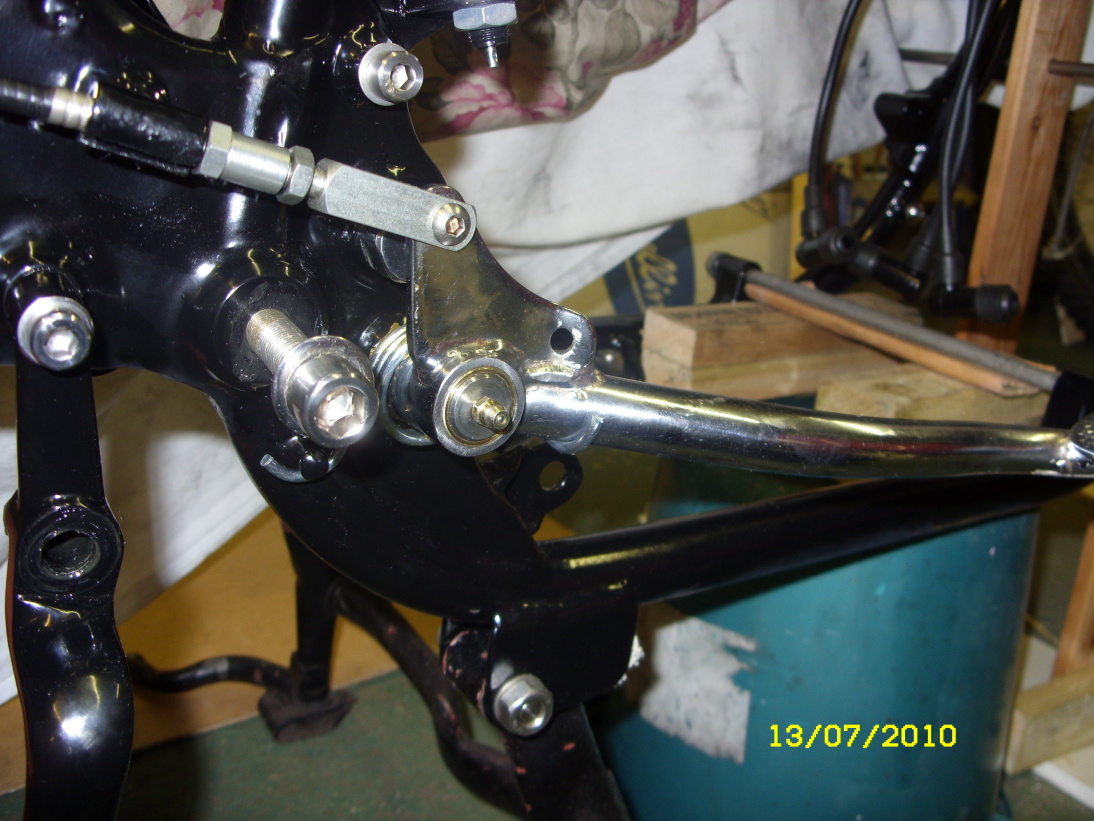

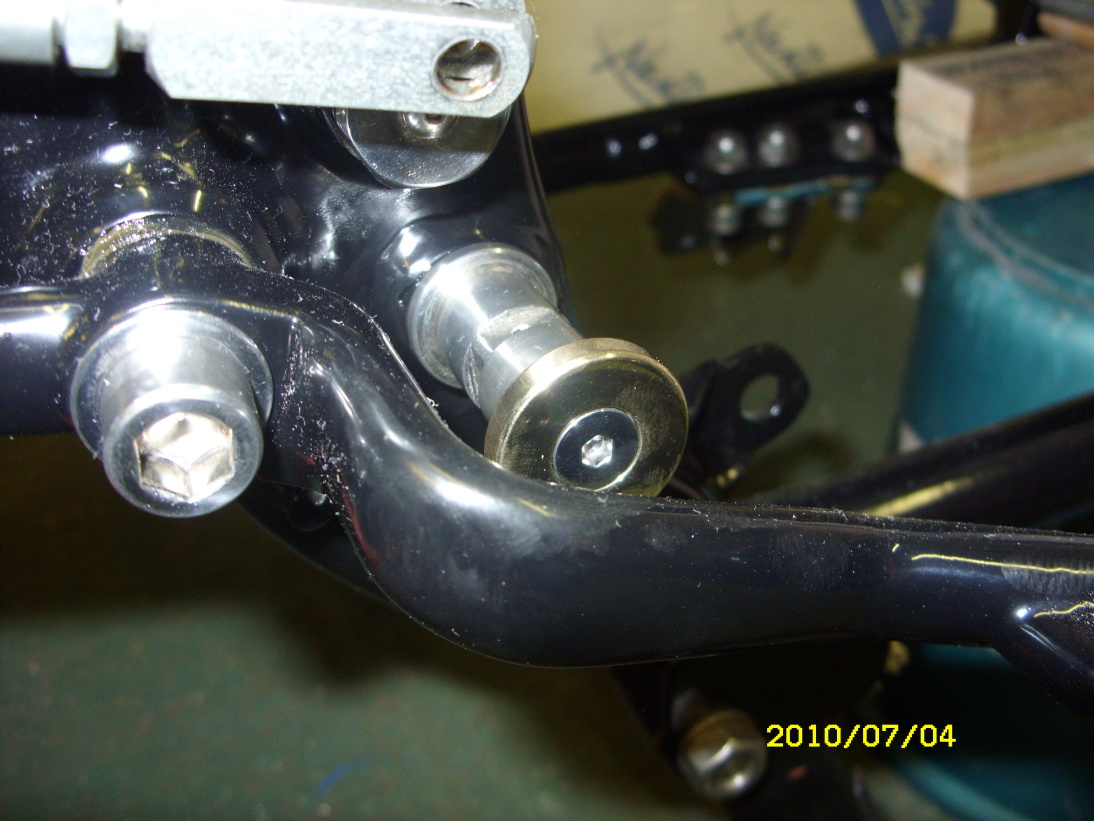

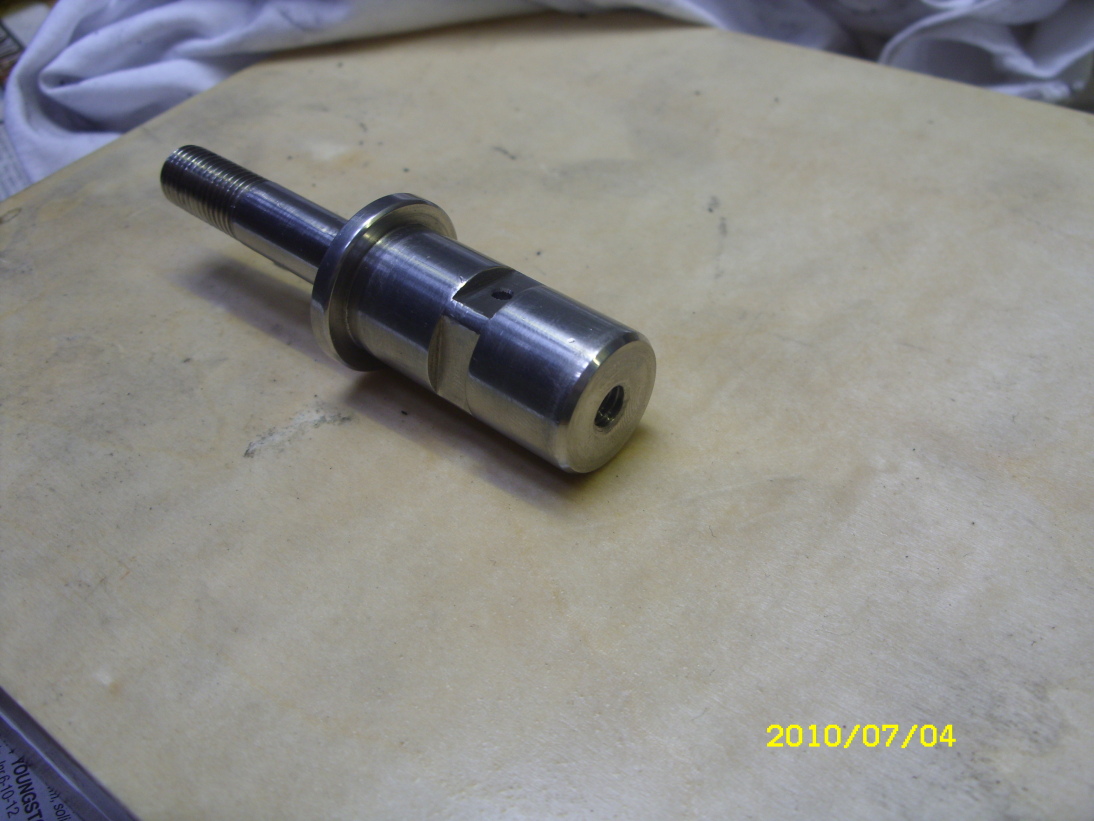

Suzuki GT750 side standBrake pedal shaft, cut off the original shaft and drilled a 10mm hole which this shaft fits into.

Suzuki GT750 side stand

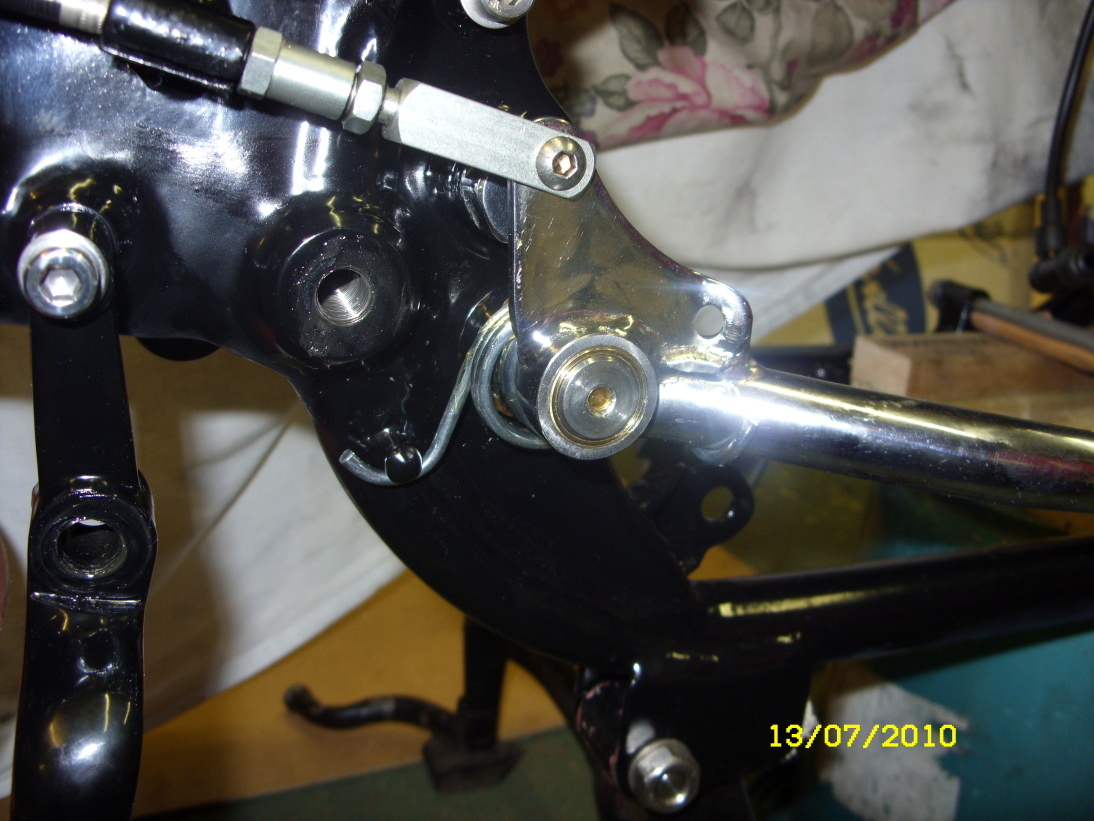

Suzuki GT750 side standA grease nipple screws into the M6 hole and the brake pedal bush can be filled with grease.

Suzuki GT750 side standRemove the grease nipple and replace the cap.
